Products Description
The steel bar thread rolling machine is a machine that uses advanced rib stripping and rolling technology to process straight threads at the connecting ends of steel bars. The steel straight threaded metal fiber processed by it is continuously dense and has good comprehensive mechanical properties. The tensile strength is increased by 20%-30%, the fatigue strength is increased by 40%-60%, and the corrosion resistance is increased by 50%-200%. The connection strength of the steel bar is higher than that of the steel bar base material, and the mechanical properties of the steel bar joint meet and exceed domestic and foreign standards.
The steel bar rolling machine can directly roll HRB335, HRB400, RRB400~rebars with Φ12, Φ14, Φ16, Φ18, Φ20, Φ22, Φ25, Φ28, Φ32, Φ36, medium and other specifications. For pretreatments such as upsetting and stripping of steel bars, regular threads can be processed directly.
.

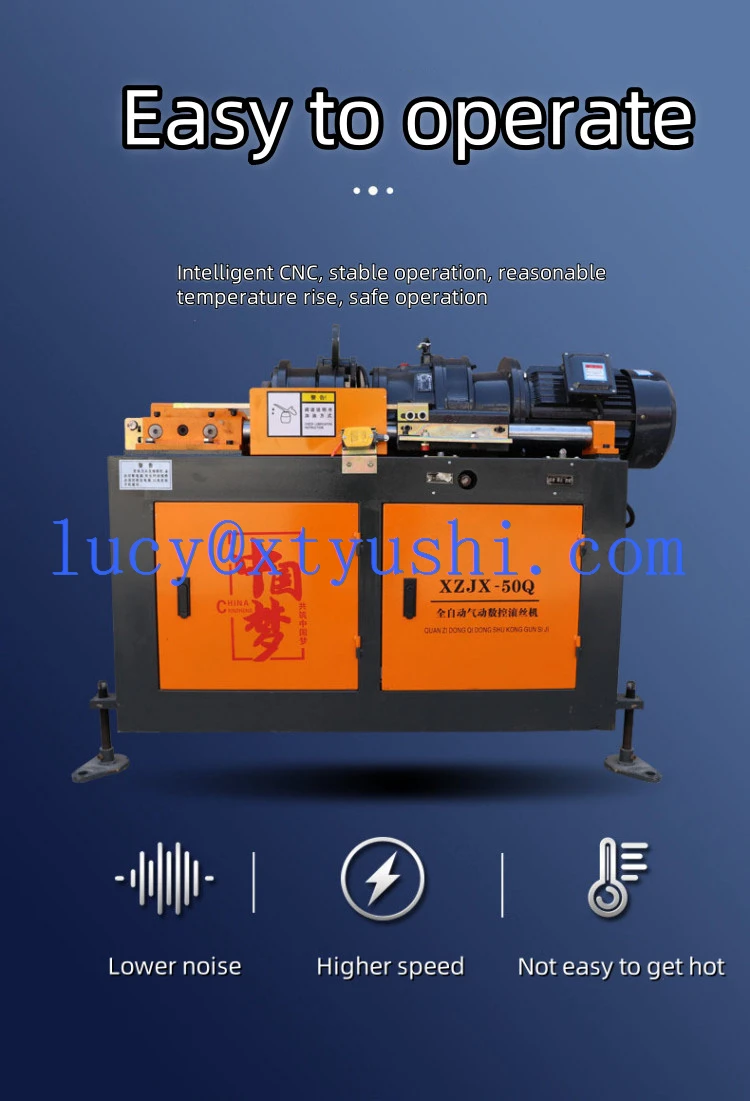

XZJX-50Q rebar screw thread rolling machine Technical parameters
|
Name： |
Rib-splitting machine |
Model： |
XZJX-50Q |
|
Main motor： |
7.5Kw |
Variable frequency control: |
Optional configuration |
|
Automation level |
automatic |
Control Form |
CNC |
|
Clamping fasteners |
Pressure-holding pneumatic |
Power type |
electric |
|
Compressed air pressure |
0.6~0.8Mpa |
Working accuracy: |
high |
|
Feed method: |
pneumatic |
Maximum stroke of thread rolling: |
100mm |
|
Cutting flat-end inserts |
High-speed alloy steel |
Pitch range： |
2.5-3.5mm |
|
weight |
565kg |
Dimension ： |
1500*660*1000mm |
|
Thread diameter range ： |
Φ16-Φ40mm(Applicable to HRB335/400/500 standard steel bars) |
||
rebar screw thread rolling machine threading part

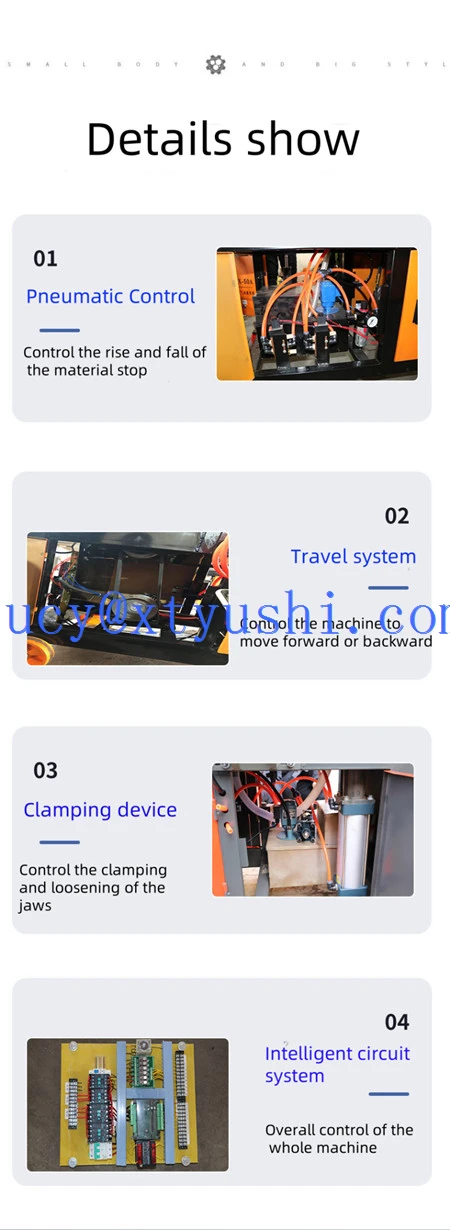

rebar screw thread rolling machine details show:
FAQ
Q1. How can we do if there are problems with the products?
A: Our engineers will analyze the problem for you and find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself.
Q2. What is the delivery time for your products?
A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Q3. Is there any guarantee for your products?
A: Most of our products have one year guarantee(for the main parts).
Q4. How can you control your product quality?
A: Quality is always considered as the most important part during our manufacturing process. All of our products come under strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting,performance test of finished products,to random inspection before delivery
