Products Description
The Yushi Comet series upgraded to high precision cnc thread rolling machine by installing Galaxy's basic functions to realize greater capability and higher cost performance.
Three-axis synchronized control cultivated in the process of developing the Galaxy CNC series is compacted into the CNC. We offer a wide selection of optional conversions including automatic operation.
high precision cnc thread rolling machine
You can change photo by clicking above thumbnail image.
Main Spindle Rotation Computer Numeric Control
The main spindle's rotation can be controlled by the precise rotational angle detection system.
Spindle Slide Spacing Control
The space between the main spindles can be controlled by the precise position detection system.
Force Thru-feed rolling
Optional device of the Servo slide center rest allows for one machine to perform both Force Thru-feed rolling and In-feed rolling.
The rolling position in a part-axis direction can be specified accurately. Thus forming at two or more locations on a workpiece in one crump and one cycle is available.
PRECISION high precision cnc thread rolling machine
The CNC thread rolling machine is a multifunctional cold extrusion forming machine tool. The cnc thread rollingmachine can perform thread, straight and oblique rolling on the workpiece in the cold state within its rolling force range;rolling of straight teeth, helical teeth and helical spline gears; straightening, reducing diameter, polishing and variousforming rolling. The CNC machine has a safe and reliable electro-hydraulic execution and control system, which allowseach working cycle to be selected in three modes: manual, semi-automatic and automatic. The thread rolling cold rollingprocess is an advanced non-cuting process that can effectively improve the intrinsic and surface quality of the workpiece.The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional
strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.
CNC Thread Rolling Machine Technical Parameters
|
max rolling pressure |
16TONS |
outer diameter of threading |
∅2-∅30mm |
|
pitch range |
0.5-3mm |
rolling length |
Infinite length |
|
Roller rotation number |
0-80rpm |
roller outersaide diameter |
180mm |
|
roller inner diameter |
54mm |
roller thickness |
25-140mm |
|
Maximum distance between roller axes |
220mm |
Minmum distance between roller axes |
140mm |
|
Distance from bed to roller shaft |
160mm |
Maximum exchange angle between two spindles |
±10° |
|
Main axis servo motor power |
2x3kw |
Feed servo motor power |
1x3kw |
|
cooling motor |
0.35kw |
Servo control system |
New generation secondary development |
|
control Panel |
15-inch full touch screen |
Support rolling method |
Fixed rolling, through rolling, split rolling, positive and negative repeated rolling |
|
weight (approximately) |
2600kg |
gross weight (approximately) |
2900kg |
|
machine floor area |
187*10100*1600mm |
packing size |
1950*10600*1900mm |

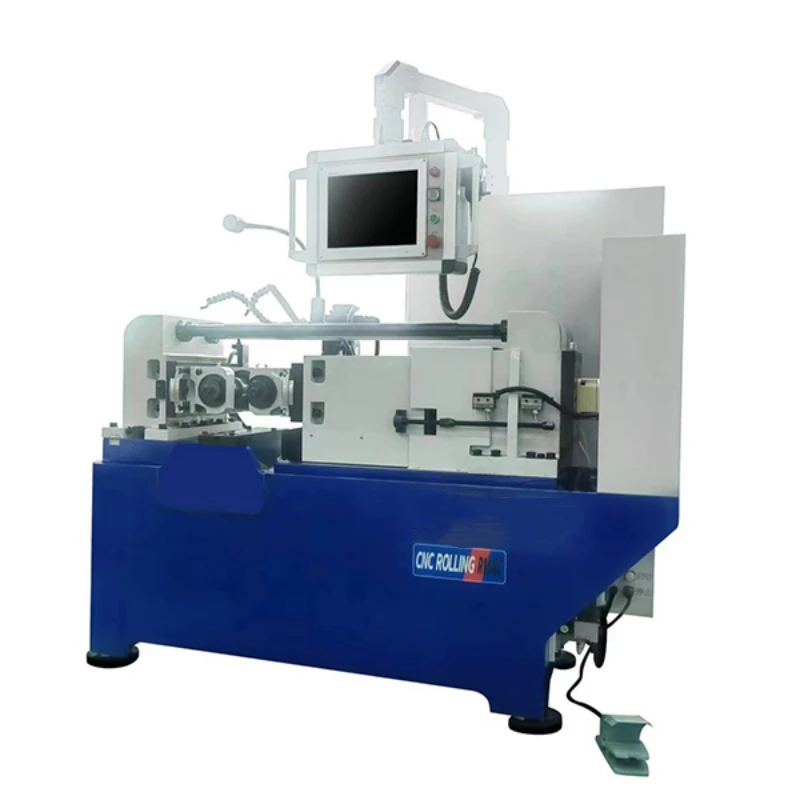

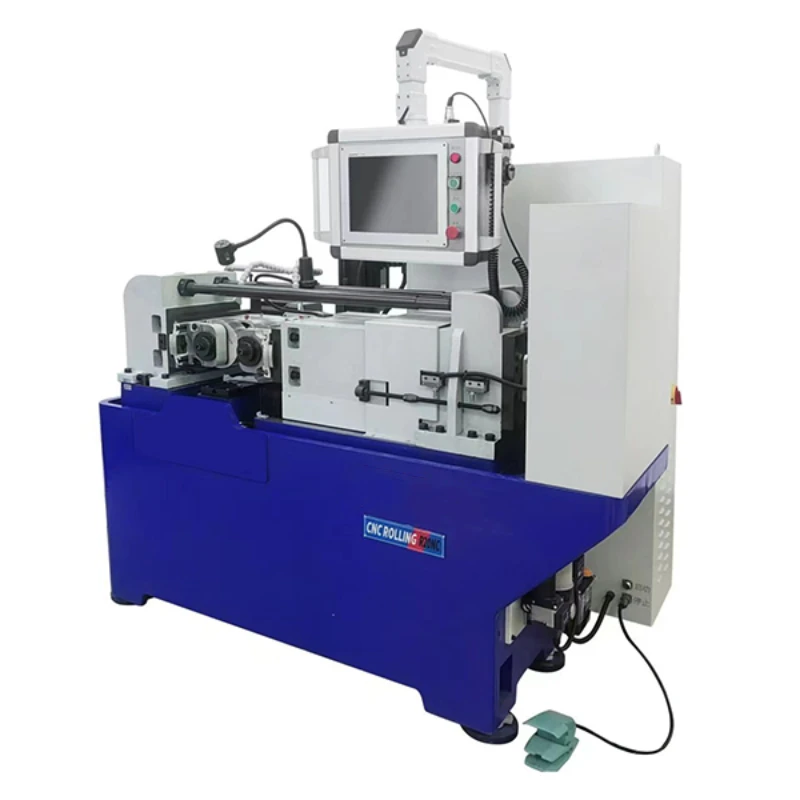

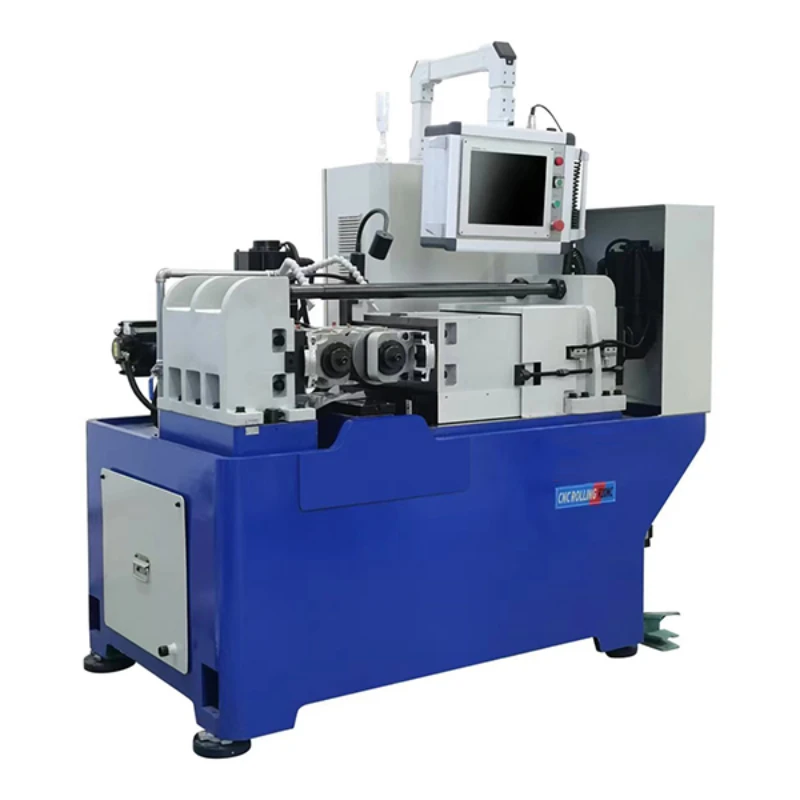

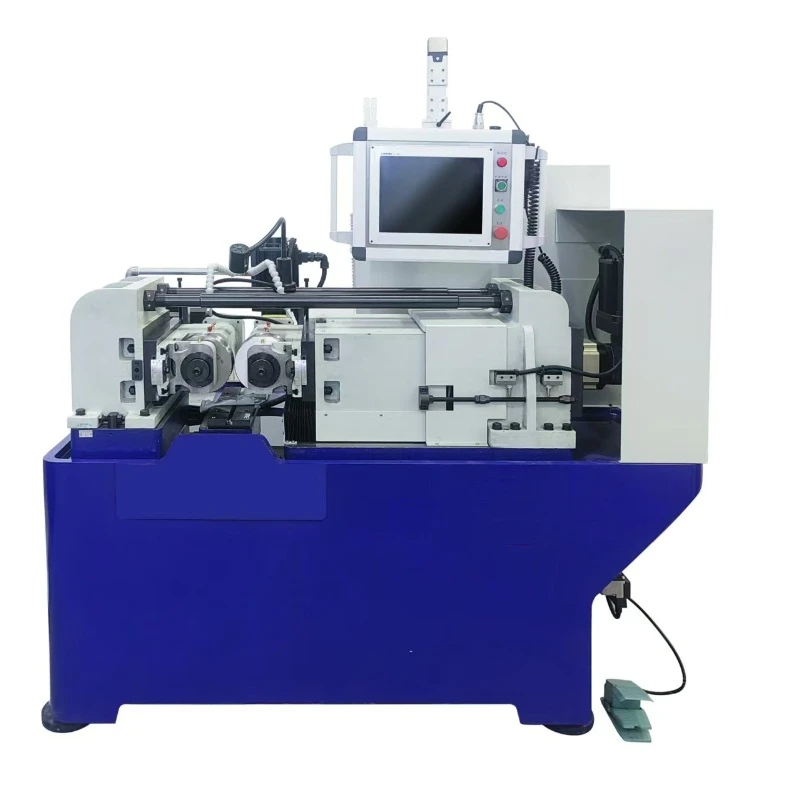

high precision cnc thread rolling machine photo show：

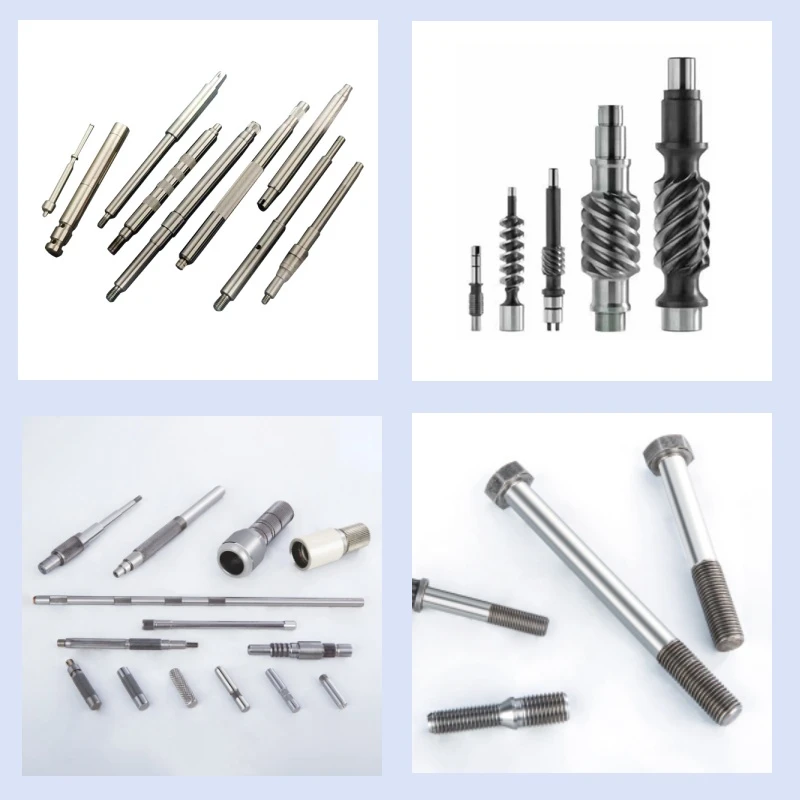

high precision cnc thread rolling machine threading part
